Type:CX-RLM-080 intelligent radar

Illustrate:CX-RLM-080 series of intelligentradar substance position gauge

Intelligent Radar level meter



Products:

CX-RLM-080
series of
 intelligentradar
substance
position gauge







Types  CX-RLM-081 CX-RLM-082 CX-RLM-083
Application

Process condition is simple,
corrosive liquids, slurries
and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks

Storing corrosive liquids,
 slurries and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks
Suitable for all kinds
 of storing tanks or
process measuring
environment, liquids,
slurries and solids.
For example:
Crude oil, light oil tank
Coal and powder coal
bunkers
Volatile liquid tank
Charcoal level
Slurry tank
Solid granules
Measuring range  20 meters  20 meters 35 meters
Process connection  Screw  Flange  Flange
Process temperature  -40-130℃ -40-150℃ -40-250℃
Process pressure  -1.0-3bar -1.0-20bar -1.0-40bar
Repeatability ± 3mm ± 3mm ± 3mm
Precision     < 0.1% < 0.1% < 0.1%
Frequency range  6.8GHz 6.8GHz 6.8GHz
Anti-explosion/
safety grade
EXiaIICT6/IP68 EXiaIICT6/IP68 EXiaIICT6/IP68
Signal output 4…20mA/HART
(two phases)
4…20mA/HART
(two phases)
4…20mA/HART
(two phases)

Technical data:
Basic parameters     working frequency:6.8GHz
                   measuring range:0…35m
                   repeatability:±3mm
                   resolution:1mm
                   response speed:>0.2s(depends on concrete application status)
                   electric current signal:4…20mA
                   precision:<0.1%
 Antenna material            081、082  is PP/PTFE
083 is 316L stainless steel
Communication interface     HART communication protocol
Process connection      081 (PP,PTFE antenna) :G1-1/2  316L stainless steel:

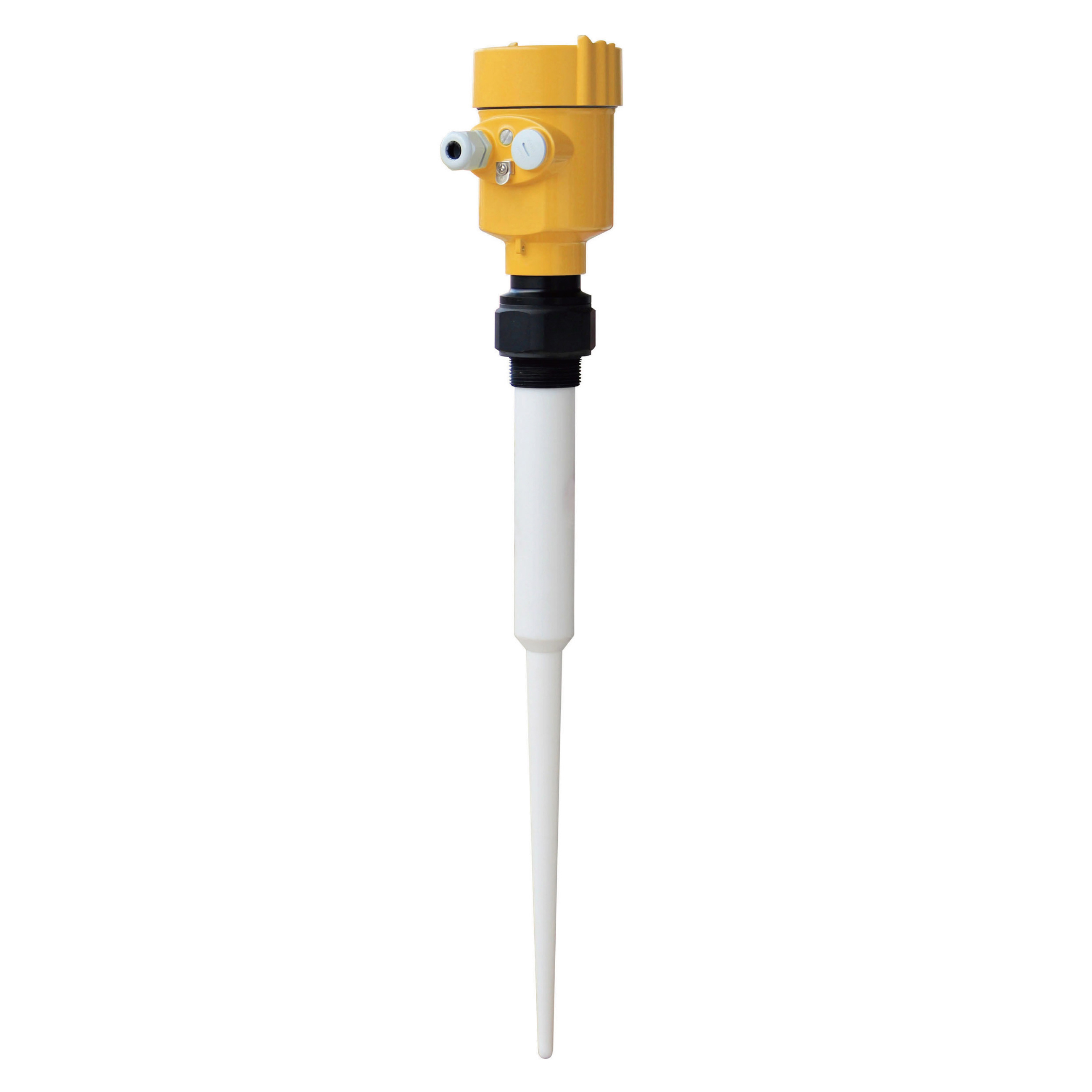

082 (rod type antenna ) :flanging flange 2″,3″,4″,6″

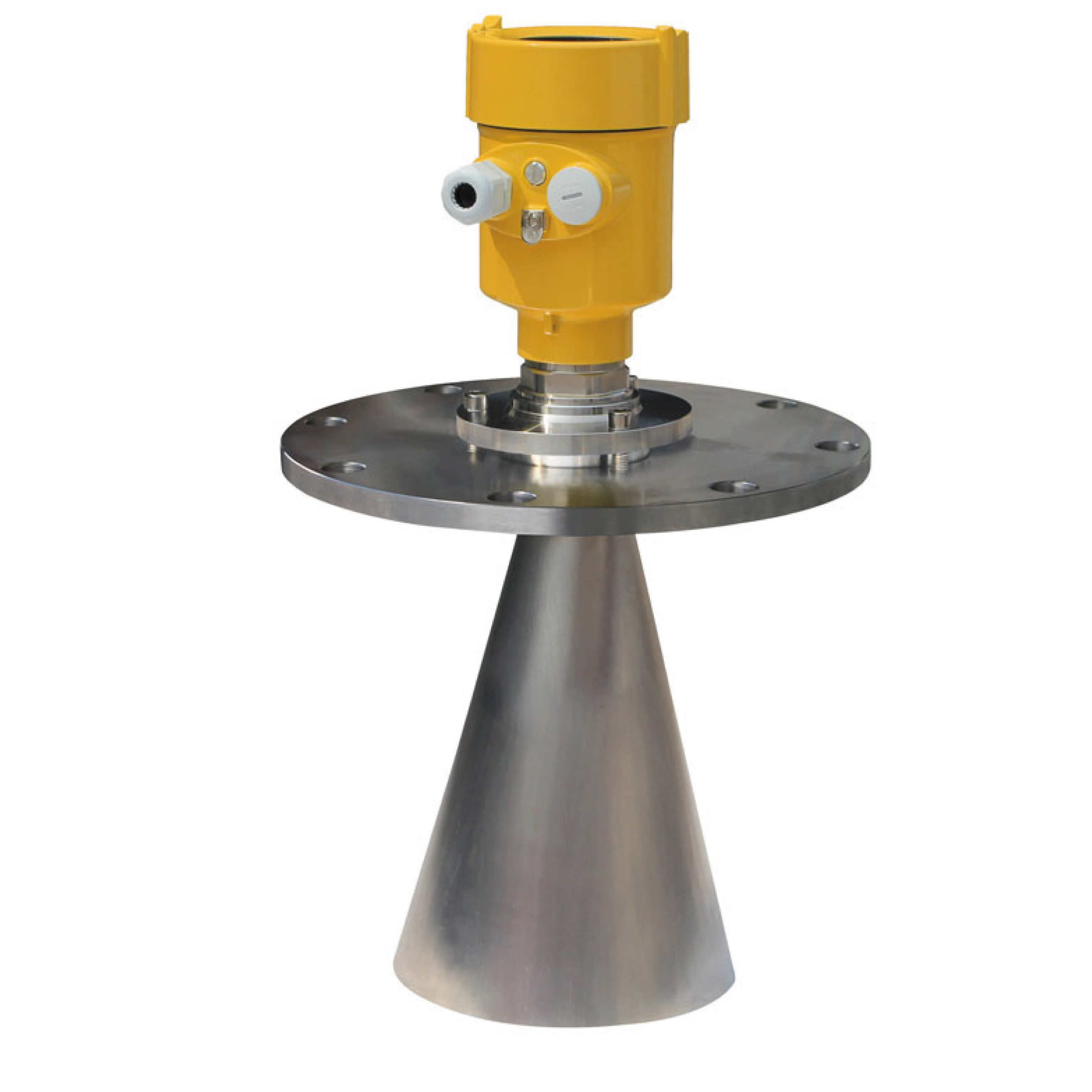

083 (horn type antenna ):flange 2″,3″,4″,6″,8″,10″
Anti-explosion authentication    ExiaIIC T6
Shell safety grade              IP68


Model selection
