Type:CX-FM fuel consumption flow meter(fuel counter)

Illustrate: Fuel consumption flow meter(fuel counter) 1) Total anti-theft oil 2) Water proof and anti-vibration 3) 360 degree ratation for counter and easy reading ,easy installation. 4) Working life can more 8 years. 5) it's our national product in China.

CX-FM Fuel consumption flow meter(fuel counter).

1)It’s the best fuel consumption flow meter (fuel counter) to manage fuel consumption. The accuracy is better than 1%.

2)It’s our patent product and certificate is issued  by  State Intellectual Property Office.

3)We are the leading manufacturer of  Fuel consumption flow meter(fuel counter) in China.

4)Monitor fuel consumption in modern way by connection with GPS.

5)The working temp is from -40C to 80C

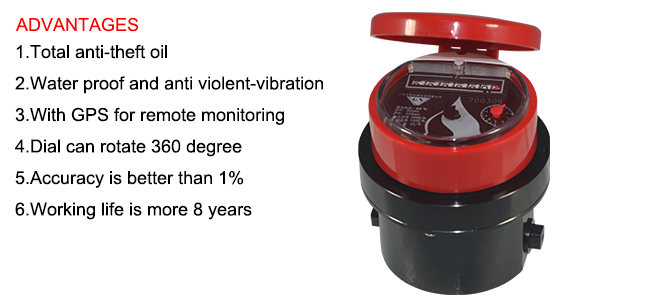

Below is advantages of fuel consumption flow meter (fuel counter)
1) Total anti-theft oil
2) Water proof and anti-vibration
3) 360 degree ratation for counter and easy reading ,easy installation.
4) Working life can more 8 years.
5) it's our national product in China.

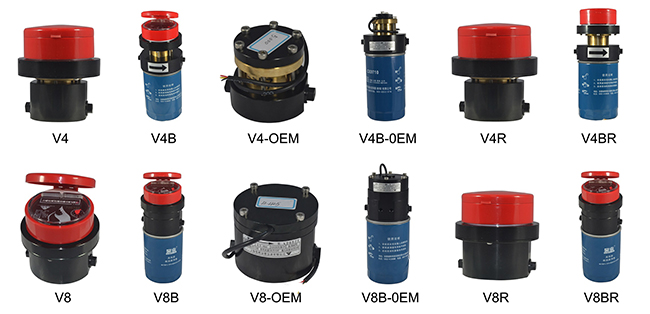

Below is mainly technical parameters for fuel consumption flow meter (fuel counter)

Model

Mechanical counter

Filter

Pulse

Flow range

Accuracy

Thread

Pressure

V4

YES

NO

NO

1-100L/H

1%

M14*1.5

32bar

V4B

YES

YES

NO

1-100L/H

1%

M14*1.5

32bar

V4B-OEM

NO

YES

YES

1-100L/H

1%

M14*1.5

32bar

V4-OEM

NO

NO

YES

1-100L/H

1%

M14*1.5

32bar

V4R

YES

NO

YES

1-100L/H

1%

M14*1.5

32bar

V4BR

YES

YES

YES

1-100L/H

1%

M14*1.5

32bar

V8

YES

NO

NO

4-200L/H

1%

M14*1.5

32bar

V8B

YES

YES

NO

4-200L/H

1%

M14*1.5

32bar

V8B-OEM

NO

YES

YES

4-200L/H

1%

M14*1.5

32bar

V8-OEM

NO

NO

YES

4-200L/H

1%

M14*1.5

32bar

V8R

YES

NO

YES

4-200L/H

1%

M14*1.5

32bar

V8BR

YES

YES

YES

4-200L/H

1%

M14*1.5

32bar

V15H-800-OEM

NO

NO

YES

10-600L/H

1%

M14*1.5

32bar



NOTE:pls refer to same series fuel counter for more big flow range .


Pulse parameters



Model

pulse equivalent

Min flow

Frequency(HZ)

Pulse with(S)

Max flow

Frequency(ZH)

Pulse with(S)

V4 OEM

200P/L

1L/H

0.055000

18.00

80L/H

4.444000

0.23

V4R-reed switch

2P/L

1L/H

0.000550

1800.00

80L/H

0.044440

22.50

V4R-hall

1P/L

1L/H

0.000270

3600.00

80L/H

0.022220

45.00

V4BR-reed switch

2P/L

1L/H

0.000550

1800.00

80L/H

0.044440

22.50

V4BR-hall

1P/L

1L/H

0.000027

3600.00

80L/H

0.022220

45.00

V8 OEM

80P/L

4L/H

0.088800

11.25

200L/H

4.444000

0.23

V8R-reed switch

2P/L

4L/H

0.000550

1800.00

200L/H

0.044440

22.50

V8R-hall

1P/L

4L/H

0.000027

3600.00

200L/H

0.022220

45.00

V8BR-reed switch

2P/L

4L/H

0.000550

1800.00

200L/H

0.044440

22.50

V8BR-hall

1P/L

4L/H

0.000027

3600.00

200L/H

0.022220

45.00


Fuel adjustor for directly measurement.

1)Ensure direct measurement accuracte, easy and safe.

2)It has function same aire elimilator.

3)Pulsation will disappear when fuel goes through the adjustor.

4)The pressure in return line will be zero with the adjustor.
5) it's invented by our engineer and special to match with our fuel consumption flow meter(fuel counter).

Mainly application for fuel consumption flow meter (fuel counter)

Usually, V4 series is suitable for engines less than 200KW and V8 series is suitable for engines from 200KW to 500KW. They are widely used for various engines such as vehicles, boats, generators, construction machine, burner, boiler, localmotive etc.

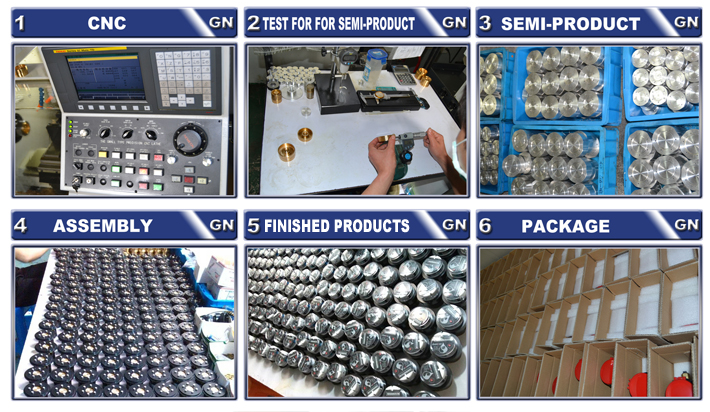

This is simple production line for fuel consumption flow meter(fuel counter).

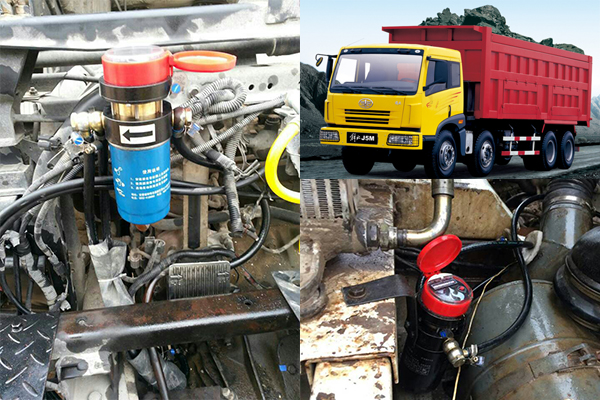

Belowo Installation sample for fuel consumption flow meter(fuel counter).

This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license


This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
