Type:CX-WUFM-TDS-100F1 Wall mounted ultrasonic flow meter

Illustrate:1) DN15~DN6000 wall mounted ultrasonic flow meter 2) ISO,CE,SGS certificates for export 3) More 80% meters for export 4) 9 consecutive years as gold supplier for export

CX-WUFM-TDS-100F1 Wall Mounted Ultrasonic Flow Meter

This is brief introduction for wall-mounted ultrasonic flow meter
1.transducers include clamp-on type,insertion type,in-line type.

2.These series products have gained the best sales volume in our company,and are the favorable products in future

3.applied to measure on-line differents  liquids in industry spot.

4. DN15~DN6000 wall mounted ultrasonic flow meter
5. ISO,CE,SGS certificates for export
6. More 80% meters for export



7. 9 consecutive years as gold supplier for export

Below is mainly features for wall-mounted ultrasonic flow meter.

1.Repeatability better than 0.2%.accuracy:better than 1%

2.Display:2*20 backlit LCD(Chinese and English optional)

3.Operating power: AC 85—264V or isolation DC 8-36VDC

4.Transducer: clamp-on type,insertion type,in-line type

5.Protection:mainframe:IP65, transducer:IP:68

6.signal output: one channel standard isolation RS485 output;

7.One channel isolation 4-20mA or 0-20mA active output;

8.One channel OCT output(programmed between the pulse width(6-1000ms),default before leaving factory (200ms)

9.One channel isolation relay output,with positive ,negative,net accumulation pulses and different alarm signals.

10.Input:two channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity. Three channel 4-20mA input optional,accuracy:0.1%,has the ability to 11.input the signals of pressure, liquid level, temperature and so on.

it can display calory by heat module

This is the mainly component for handheld ultrasonic flow meter.

We do Best in every details to produce Best wall mounted ultrasonic flow meter.

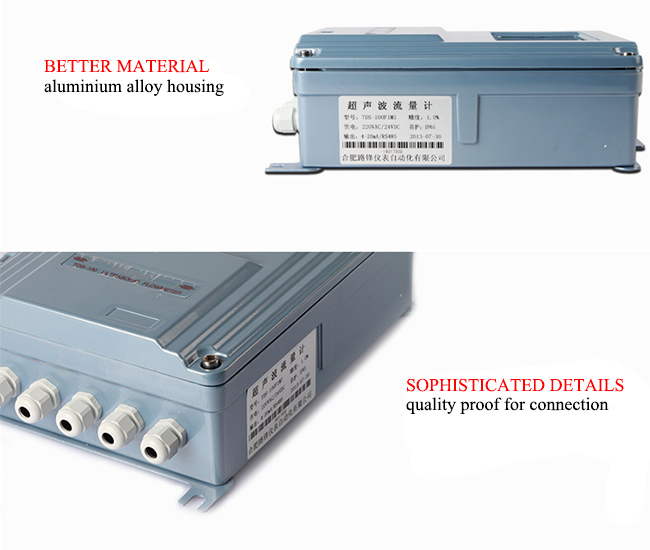

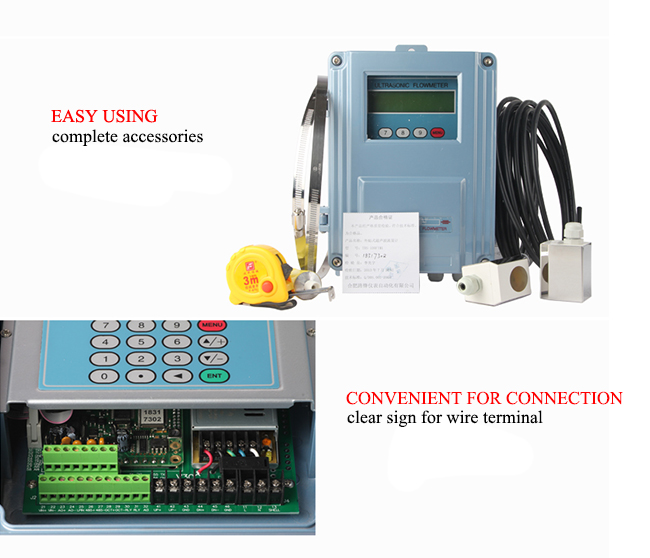

This is cable to connect transmitter with sensor for wall mounted ultrasonic flow meter

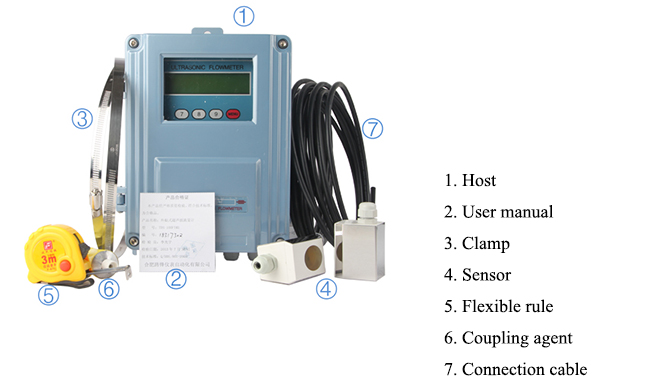

This is various sensors and support for wall mounted ultrasonic flow meter.

Data

S1Z

M1Z

S1

M1

L1

S1H

M1H

Pipe size

15-100

50-700

15-100

50-700

300-6000

15-100

50-700

Material

Aluminum Alloy

ABS

Special material for hi-temp

Frequency

1MHz

Installation

V(N,W)flange

V,Zflange

V(N,W)flange

V,Zflange

Zflange

V(N,W)Flange

V,Z flange

Calibration

Calibrated together with flowmeter

Magnetic

yes

no

Temperature

0°C-70°C

0°C-160°C

IP

IP65

Outsize

200×25×25

280×40×40

45×30×30

60×45×45

80×70×55

90×85×24

90×82×29

WT(g/pair)

250

1080

75

250

650

94

150

Medium

Water,sea water,sewage,Alcohol,oil etc

Turbidity

≤10000ppm with little air bubble

Pipe

Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc.

Pipe inner

Rubber,Slurry,PP,PS,bakelite, PTFE

Signal cable

standard:5M×2,optinal:10M×2 or 15M×2...

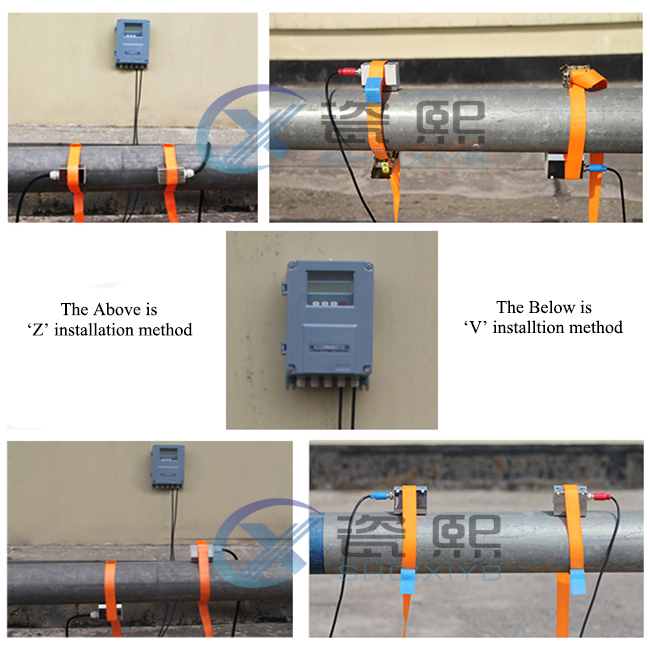

Below is installation sample of portable ultrasonic flow meter for your reference.

This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license


This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
