Description

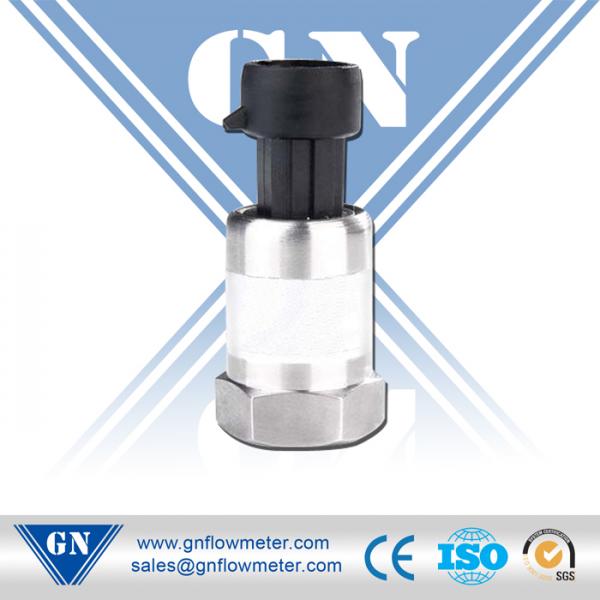

The CXPTB-231 series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.

Applications
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring

Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
Dimension



Specification
Range     0….1bar to 0….100bar
Accuracy0.5%FS ; 1%FS
Linear     0.02%FS
Reliability      0.05%FS
Output    4-20mA, 0-5V, 0.5-4.5V,1-5V
Input Voltage  24(8-36V)DC
Operating Temperature  -20℃~100℃
Temperature Compensation   -10~65℃(Standard Compensation)
 Over Pressure       150%FS
Case Material  304SS
Electric connectionSpecial Packard connector
Process connectionG1/4, 1/4NPT,1/8NPT, 7/16-20UNF(Optional)
Wiring Code



Signal output	4-20mA(2 wires)		0-5V, 0.5-4.5V,1-5V (3 wires)
Wiring code	1	Input（Red）	1	Input   （Red）
	2	Output（Black）	2	common point   （Black）
	3	none	3	Output   （Blue）
	Remarks:Abovewiringconnectoristhestandardtype,ifyouneedthespecialwiring,   please contact with the companyat first.

Ordering Guide


Model	Range	Output	Process Connection	Electric Connection	Other Requirement
CXPTB-231	---	---	---	---	---
Example: CXPTB-231-16Bar-4/20mA-7/16F-Packard connector
