thermocouple (thermal resistance) with protection tube - Thermocouple(Thermal Resistance) For Power Station

Location -> Products -> Temperature -> Thermocouple and Thermal Resistance -> Thermocouple(Thermal Resistance) For Power Station

Type：thermocouple (thermal resistance) with protection tube

Illustrate：It is used for steam pipe , boiler and other environment with demands on temperature ,pressure and flow speed.

Thermocouple (Thermal Resistance) with Protection Tube

Application
It is used for steam pipe , boiler and other environment with demands on temperature ,pressure and flow speed.
Main Technical Parameters
Electric Outlet: M20×1.5, NPT1/2
Connection Size: M20×1.5, NPT1/2
Protection Class: IP65

Type & Specification

Type	Graduation	Measuring Range °C	Nominal Pressure	Flow Speed	Remarks
WRN-01T WRN2-01T	K	0～800	＜30Mpa	＜100m/s
WRE-01T WRE2-01T	E	0～600
WZP-01T WZP2-01T	Pt100	-200～500
WRN-624 WRN2-624	K	0～800	＜30Mpa	＜80m/s	Insulation Type
WRE-624 WRE2-624	E	0～600
WZP-624 WZP2-624	Pt100	-200～500
WRN-625 WRN2-625	K	0～800			Shell-connecting Type
WRE-625 WRE2-625	E	0～600			Shell-connecting Type

Type	Graduation	Measuring Range °C	Nominal Pressure	Flow Speed	Specification
WRN-012T WRN2-012T	K	0～800	≤10Mpa	ˉ	400×230 640×430 840×630 1340×1130 2500×1200 640×430 3000×1500 3500×1700
WRE-012T WRE2-012T	E	0～600
WZP-012T WZP2-012T	Pt100	-200～500
WRN-12A WRN2-12A	K	0～800
WRE-12AT WRE2-12AT	E	0～600
WZP-12AT WZP2-12AT	Pt100	-200～500
WRN-013T WRN2-013T	K	0～800	≤30Mpa	≤100m/s	380×50 430×100 480×150
WRE-013T WRE2-013T	E	0～600
WZP-013T WZP2-013T	Pt100	-200～500
WRN-014T WRN2-014T	K	0～800	≤10Mpa	≤80m/s	280×50 330×100 380×150 430×200 480×250 530×300
WRE-014T WRE2-014T	E	0～600
WZP-14T WZP2-14T	Pt100	-200～500
WRN-015T WRN2-015T	K	0～800	≤10Mpa	ˉ	280×50 330×100 380×150 430×200 480×250 530×300 580×350 630×400
WRE-015T WRE2-015T	E	0～600
WZP-015T WZP2-015T	Pt100	-200～500

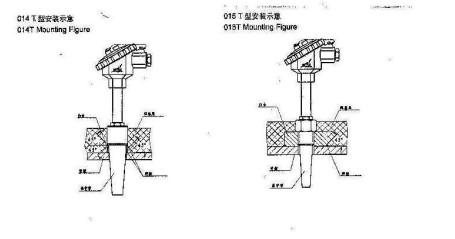

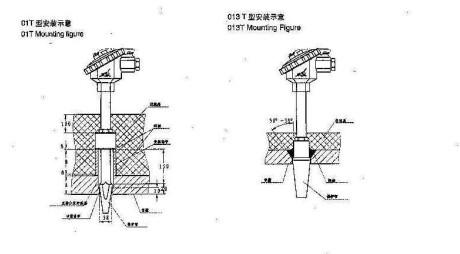

Mounting Figures
