CIXIMF Vertical Multistage Centrifugal Pump

Regarding your requirements for selecting a CIXIMF vertical multistage centrifugal pump (medium: water, flow rate: 40 m³/h, head: 80 m, 2 pumps, one for standby, with pressure tank and PLC control panel), our technicians recommend the 80CDL42-40 vertical multistage centrifugal pump as a reasonable and standard-compliant solution. The following is a detailed analysis:



I. Core Parameter Matching Verification



Flow Rate and Head

Model Parameters: The rated flow rate of the 80CDL42-40 is 40 m³/h, and the head is 80 m (4-stage impeller, single-stage head approximately 20 m).



Requirement Matching: Fully meets the user's flow rate and head requirements, ensuring efficient system operation.



Power and Speed

Motor Configuration: 15kW-2P (AC380V 50Hz 3PH), speed 2900 rpm, protection class IP55, insulation class F.



Efficiency Analysis: Multistage pump efficiencies typically range from 65% to 75%. A 15kW motor can meet the 80m head requirement while providing sufficient margin to accommodate changes in system resistance.



Materials and Sealing: Flow-through components: SS304 stainless steel (impeller, guide vanes) + HT250 cast iron (pump body), highly corrosion-resistant, suitable for conveying clean water.



Sealing Type: Mechanical seal (silicon carbide/fluororubber material), reducing leakage risk and extending service life.



II. System Configuration Rationality Analysis

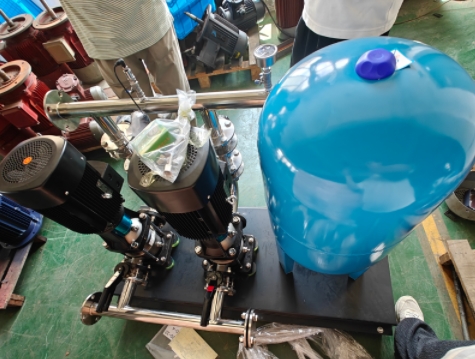

One Backup Design: Dual pump configuration: Two 80CDL42-40 pumps, automatically switching via a constant pressure unit (DN80-DN80/2HYD) to ensure continuous water supply.



Pressure Tank Function: A 100L pressure tank buffers system pressure fluctuations, reducing frequent pump start-stop cycles and extending the lifespan of the motor and mechanical seal.



PLC Control Panel Functions: Automation Control: Monitors parameters such as pressure, flow rate, and current; supports manual/automatic switching, fault alarms, and remote monitoring.



Energy-saving optimization: Automatically adjusts pump operation based on water consumption (e.g., single/dual pump switching) to reduce energy consumption.



Interface and installation: Inlet/outlet diameter: DN80 (80mm), compatible with system piping to reduce resistance loss.



Mounted base: Cast iron material, providing stable support and reducing vibration and noise.



III. Summary of Advantages of the Selected Solution



Parameters/Configuration 80CDL42-40 Solution User Needs Matching Results



Flow Rate 40m³/h 40m³/h Fully Matched



Head 80m 80m Fully Matched



Power 15kW - Meets high-efficiency operation requirements



Material SS304+HT250 Corrosion resistant, clean water conveyance Meets requirements



Sealing Mechanical seal Reduces leakage Superior to standards



System Configuration One standby + pressure tank + PLC Automated control, continuous water supply Fully Meets requirements
