Accurate Formic Acid High Pressure Constant Flow Pump

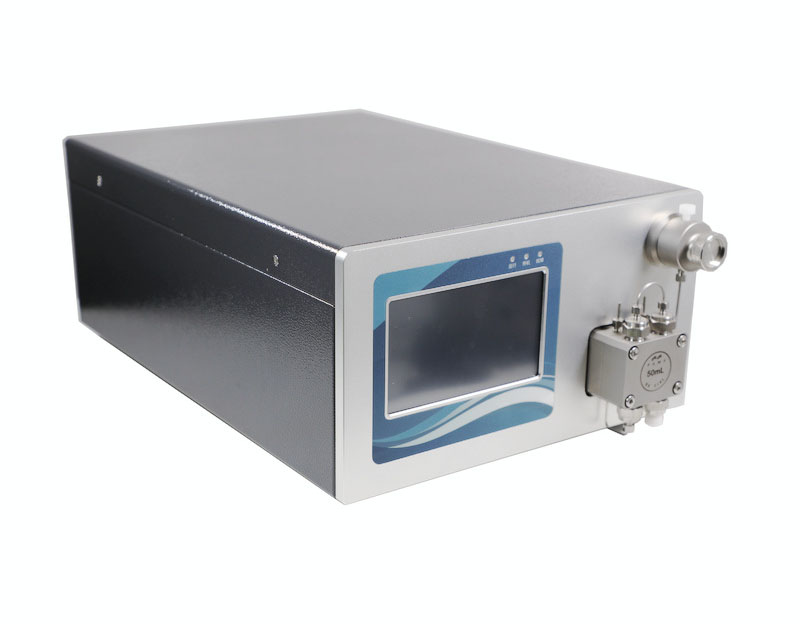

CX-HL-0010MINI Stainless Steel High Pressure Constant Flow Pump – Accurate Formic Acid Delivery Made Simple
A Pump You Can Rely On for Tough Liquids
Pumping formic acid or other corrosive chemicals at high pressure is never easy. Some pumps leak. Some lose accuracy. Some simply fail.
The CX-HL-0010MINI solves these problems. It is a stainless steel high pressure constant flow pump built for real-world laboratory and industrial applications.
What Makes It Stand Out?
Solid Material Choice
The pump is made of 316L stainless steel. This means it stands up well to formic acid and other liquids that are compatible with 316L. No corrosion. No contamination.
Dual Plunger Design
Two plungers work together in a series configuration. The result is smooth, steady flow with pulsation as low as 0.5% (measured at 10 MPa and 1 mL/min). Sensitive instruments like HPLC columns will thank you.
High Pressure Capability
With a maximum working pressure of 42 MPa, this pump handles jobs that ordinary pumps cannot touch.
Excellent Precision
-
Flow accuracy: ±0.15%
-
Repeatability (RSD): 0.1%
You get the same flow rate, day after day, run after run.
Operating Range That Makes Sense
The pump supports a flow range from 0 to 9.999 mL/min. However, for best performance with formic acid, we recommend operating between 0.1 and 0.5 mL/min. At this range, you achieve maximum pressure stability, lowest pulsation, and best repeatability.
Easy to Connect and Control
-
Inlet port: 1/8 inch
-
Outlet port: 1/16 inch
-
Control options: RS232 or LAN
You can integrate the CX-HL-0010MINI into automated systems with ease. Remote control, data logging, and system synchronization are all possible.
Where Can You Use This Pump?
-
HPLC systems – Reliable mobile phase delivery including formic acid buffers
-
Chemical dosing – Precise metering of corrosive liquids
-
Laboratory automation – Long-duration experiments requiring stable flow
-
Pilot plant feeding – High-pressure transfer of reactive chemicals
Technical Summary
| Parameter | Value |
|---|---|
| Model | CX-HL-0010MINI |
| Material | 316L Stainless Steel |
| Pump Type | Double Plunger Series |
| Flow Range | 0 – 9.999 mL/min |
| Recommended Flow | 0.1 – 0.5 mL/min |
| Max Pressure | 42 MPa |
| Pressure Pulsation | ≤0.5% @ 10 MPa, 1 mL/min |
| Flow Accuracy | ±0.15% |
| Repeatability (RSD) | 0.1% |
| Control Modes | RS232, LAN |
| Power | 75W |
Final Thoughts
If you need to pump formic acid or any stainless steel‑compatible liquid with high pressure, low pulsation, and excellent repeatability, the CX-HL-0010MINI is a solid choice.
It is accurate. It is durable. It is easy to integrate.
Contact us today to learn more or request a quote.
