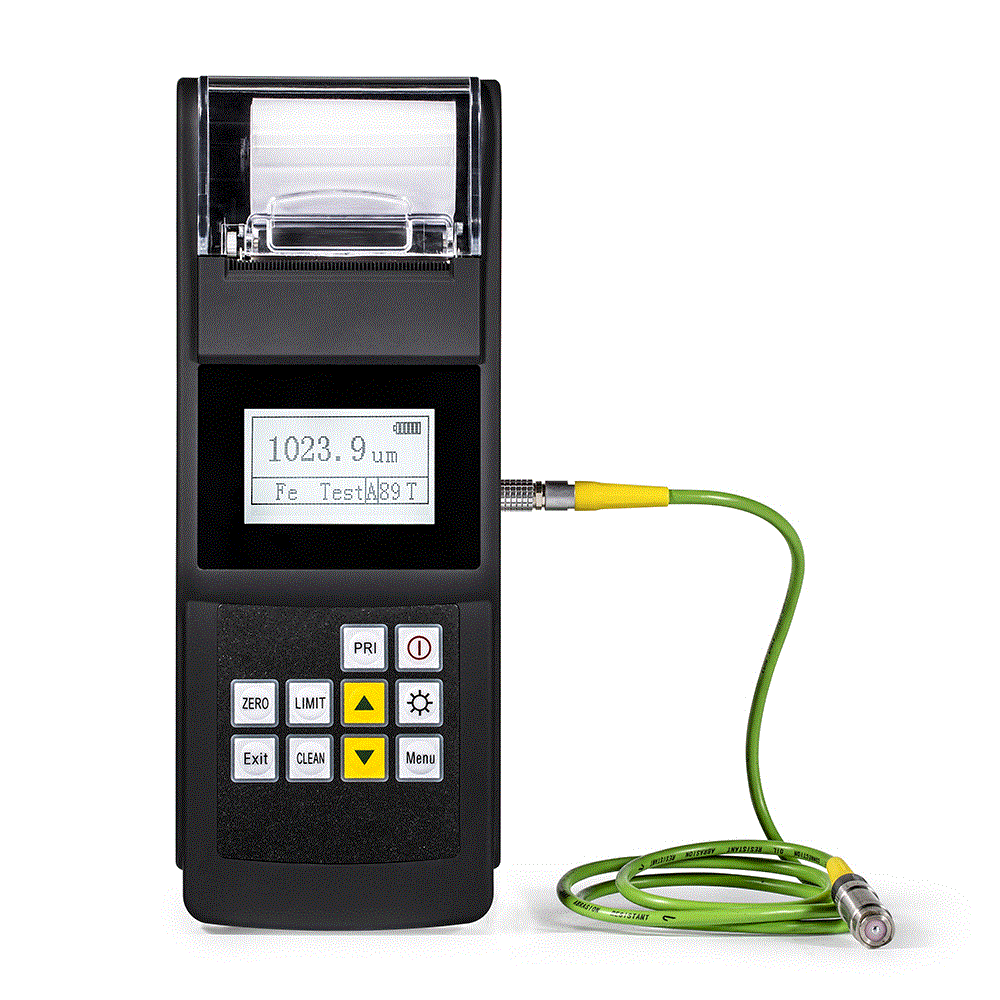

CX-CTG-242  Coated Thickness Meter
Main function：
   Ribot coated thickness meter with magnetic and eddy current two methods for measurement of thickness, can be measure the thickness of  magnetic metallic coatings on non-magnetic cover layer nondestructively. (such as steel, iron, alloy  and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and  thickness of the Non-magnetic metal with non-conductive insulating cover layer (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).

●All English menu;
●2 types measuring method;
●2 types working method;
●Memory up to 500 ocs measurement value;
●Data delete function;
●Can set the limits;
●can automatic alarm for measurement value
of out of limits;
●Undervoltage indication of power;
●Manual and automatic power off.

Main function：
●Automatic calibration zero point, can revise system error.
●Can setting the out of the tolerance alarm of the upper and lower limit.
●Data transmitter: RS232 interface, can connect with PC,
●Voltage tips, automatic power off function;
●Large screen LCD with backlight, adjustable contrast;
●Two-point calibration function.

Technical parameter:

		CTG-242
Measuring head type		F1 or N1
Operational principle		Magnetic induction or Eddy current
Measuring range		0~1250μm
Lower limit resolution		0.1μm
Indication error	One-point Calibration	±（3%H+1）
	Two-point Calibration	±[（1~3%)H+1]
Measure condition	The mini. radius of curvature(mm)	bulge 1.5, concave9
	Mini. area dia.(mm)	Φ7
	Basic critical thickness(mm)	0.5
Working  environment	Temp.	0~40℃
	Humidity	20%~90%
Power supply		6V Rechargeable NiMH battery
Outline dimension		212×80×32mm（main body）
Weight		400g
Standard configuration		Main body, standard test block,  basal body, power adapter,  Printing paper
Optional configuration		Other kind of probe, Printing paper
