Location -> Liquid level

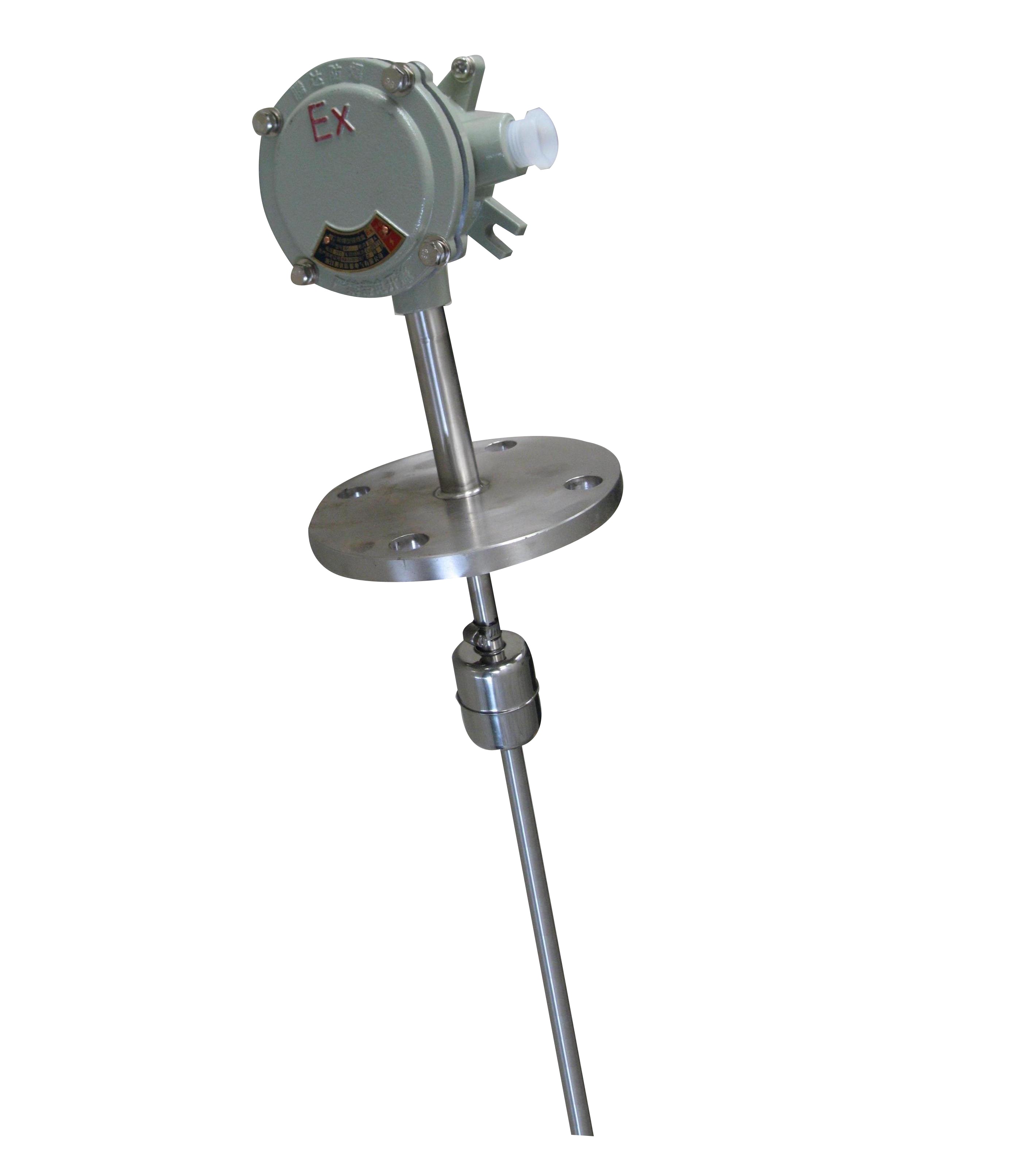

Type：Float level transmitter
Illustrate： CX-ULM-UQK-91 series level control instrument is widely used in oil refining ,chemical ,paper ,food and sewage treatment industries . It can process the liquid level display ,alarm and control in the open or close or underground container . The m..
CX-ULM-UQK-91 series level control instrument is widely used in oil refining ,chemical ,paper ,food and sewage treatment industries . It can process the liquid level display ,alarm and control in the open or close or underground container . The medium can be water ,oil ,acids ,alkalis ,industrial effluent and the non-conductive liquid ,it can overcome the fake liquid level cause by the bubble in the liquid .
Anti-corrosion type controller have excellent corrosion resistance for corrosive medium . And anti-explosion type can apply in the explosive situations (Explosion-proof ,explosion-proof mark : dⅡBT4).
CX-ULM-UQK-91 series level display controller consist of sensor and display part .
| Type | Code | Description | ||
| CX-FLM-UQK-91- | □ | □ | □ | |
| Check point | 2 | 3 points detect . The 1st point is exceed limit alarm . Match UQK-86-2 type display instrument . | ||
| 4 | 5 points detect . The 1st point is exceed limit alarm . Match UQK-86-4 type display instrument | |||
| 10 | 11 points detect . The 1st point is zero point. Match UQK-86-10 type display instrument | |||
| 50 | 50 points detect . 50 points detect . Match UQK-86-50 type display instrument | |||
| 100 | 100 points detect . 50 points detect . Match UQK-86-100 type display instrument | |||
| Material | S | Detection rod material is Polylvinyl chloride ,polypropylene | ||
| G | Detection rod material is stainless steel（1Cr18Ni9Ti ） | |||
| F | Detection rod material is PTFE（F46） | |||
| X | Detection rod material is SS small float with narrow neck test tube | |||
| Explosion-proof capability | B | Explosion-proof ,only from G and F type . Explosion-proof class：dⅡBT4 | ||
| - | Non-explosion proof type | |||
Main parameter
| Content | Type | |||||
| G(B) | F(B) | S | GX | |||
| Standard | Q/320621EXE01-2001 | |||||
| Range | ≤6m | ≤6m | ≤2m | ≤1.5m | ||
| Medium temperature | -40～+80℃(High+120℃) | -40～+80℃(High+120℃) | -5～+45℃ |
-40～+80℃ (High+120℃) |
||
| Ambient temperature | -10～+60℃ | -10～+60℃ | -5～+45℃ | -10～+45℃ | ||
| Working pressure | 1.0Mpa | Normal pressure | 0.25Mpa | |||
| Power supply | 24VDC | |||||
| Measured medium ratio | ≥0.7g/cm3 | |||||
| Measured medium viscosity | ≤1.25 St（1St=10-4m2/S） | |||||
| Load resistance | 620Ω | |||||
| Outer cable connecter | Female screw M20×1.5 | |||||
| Output signal | 4~20mA | |||||
| Accuracy | ±10mm | |||||
| Flange | HG20592~20635－97/DN80~150/PN1.0~2.5MPa，and other flange standard GB，HGJ，ANSI（flange is optional spare parts） | |||||
| Anti-explosion capacity | （dIIBT4） | - | - | |||
Last：Top-mounted float level sensor Next：Anti-corrosive Float level cont..
