Description

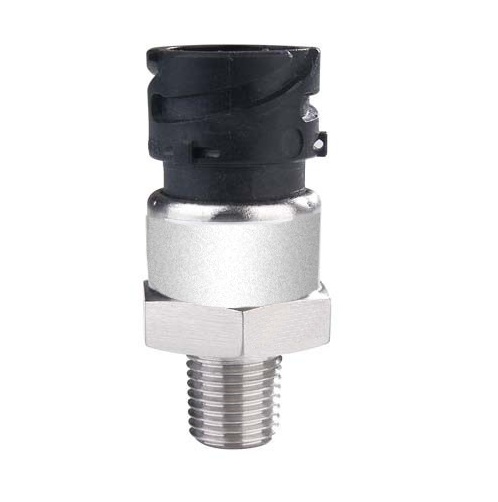

The CXPTB-233 series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling. This series can replace the similar type of other products, and it can meet the requirement of various compressors and refrigeration equipments.

Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure

Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options

Dimension


Specification
Range     0….1bar to 0….60bar
Accuracy0.5%FS; 1%FS
Linear     0.02%FS
Reliability      0.05%FS
Output    0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
Input Voltage  24(5-36V)DC
Operating Temperature  -20℃~100℃
Compensation Temperature   -10~65℃(Standard compensation)
Over Pressure150%FS
Housing material    304SS
Electric Connection       Packard connector
Process ConnectionZ1/4, 1/4NPT, 1/8NPT (Optional)

Wiring Code



Signal output	4-20mA(2 wires)		0-5V, 0.5-4.5V,1-5V (3 wires)
Wiring code	1	Input（Red）	1	Input   （Red）
	2	Output（Black）	2	common point   （Black）
	3	none	3	Output   （Blue）
	Remarks:Abovewiringconnectoristhestandardtype,ifyouneedthespecialwiring,   please contact with the companyat first.

Ordering Guide


Model	Range	Output	Process Connection	Electric Connection	Other Requirement
CXPTB-233	---	---	---	---	---
Example：CXPTB-233-50Bar-4/20mA-G1/4-Packed connector
