Description

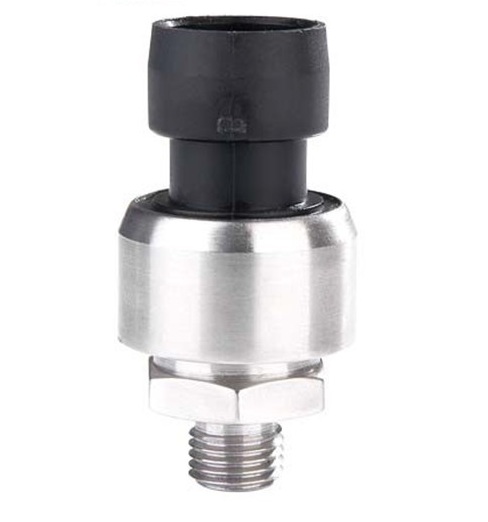

We supply the electronic automotive sensor with the feature of compact configuration, high reliability, easy to install, vibration proof and all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure. This series is used to measure the pressure of engine oil, brake system, fuel, diesel engine high-pressure common rail test system in the automotive industry. It can also be used to measure the pressure for liquid, gas and steam.

Application
Engine oil
ABS system
Fuel pump
Fuel cylinder high-pressure common rail system
Automotive & air-condition pressure measuring

Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options

Dimension



Specification
Range     0….1bar to 0….60bar
Accuracy0.5%FS; 1.0%FS
Linear     0.02%FS
Reliability      0.05%FS
Output    0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
 Input Voltage       5VDC, 24(12-36V)DC
Operating Temperature  -20℃~120℃
Compensation Temperature   -10~65℃(Standard compensation)
Over Pressure150%FS
Case material  304 SS
Electric Connection       Packard connector
Process Connection1/4NPT, 1/8-27NPT, 7/16-20UNF (Optional)
Wiring Code



Signal output	4-20mA(2 wires)		0-5V, 0.5-4.5V,1-5V (3 wires)
Wiring code	1	Input（Red）	1	Input   （Red）
	2	Output（Black）	2	common point   （Black）
	3	none	3	Output   （Blue）
	Remarks:Abovewiringconnectoristhestandardtype,ifyouneedthespecialwiring,   please contact with the companyat first.

Ordering Guide


Model	Range	Output	Process Connection	Electric Connection	Other Requirement
CXPTB-240	---	---	---	---	---
Example: CXPTB-240-10Bar-4/20mA-G1/8- Packed connector
