Description

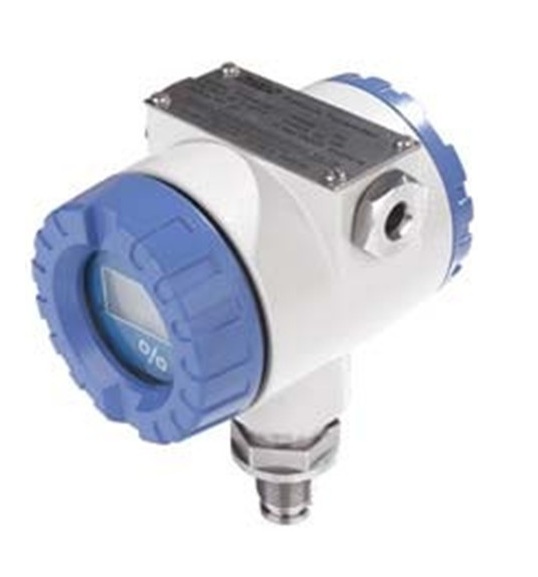

CXPTB-282 intelligent pressure transmitter adopted compensation technology of digital circuit, the output is 4-20m, with HART optional, stainless steel sealed construction with LCD display, suitable for all kinds of industrial process measuring and controlling.

Application
Petroleum and chemical
Seam flow
Hydraulic controlling

Feature
Digital circuit compensation technology
Intrinsically safe
High accuracy, high stability
Explosion proof shell with LCD display
Output is 4-20mA,and load HART protocol

Dimension

Remarks: Above dimension only for reference, we can tailor the product as you required.
Specification

Range	0….50mbar to 0….1000bar
Accuracy	0.25%FS, 0.5%FS
Linear	0.02%FS
Over pressure	150%FS
Output	4-20mA, HART option
Input voltage	24(12-36V)DC
Operation temperature	-40℃~125℃
Temperature compensation	-10℃~70℃
Explosion class	ExiaII CT4
Electric connector	Terminal block
Process connector	M20x1.5,clamp,flange (optional)


Wiring Code
Inside Terminal of Pressure Transmitter：













Wiring connector:
Power supply   Red
Signal output   Black



Instruction ofwiring：
1,Terminal “CK+”：Input voltage +
2,Terminal “+ ”：Signal output +
3,Terminal “－”and terminal “CK-” In house short circuit, connectionless

Ordering Guide

Model	Range(bar)	Output	Process connection	Electric connection	Other requirement
CXPTB-282	---	---	---	---	---
Example:CXPTB-282-100bar-4/20mA-M20*1.5-Direct shieldcable
