Type： CXGP211 Plastic shell pH electrode
Illustrate： CXGP211PlasticshellpHelectrode Character： Measuringrange：0-14pH Temperaturerange：0-60℃ Pressure：0.6MP Installationway：upanddown3/4NPTpipethread Material：PPS connectionway：Leadsdirectlytolow-noisecable ★usingt..

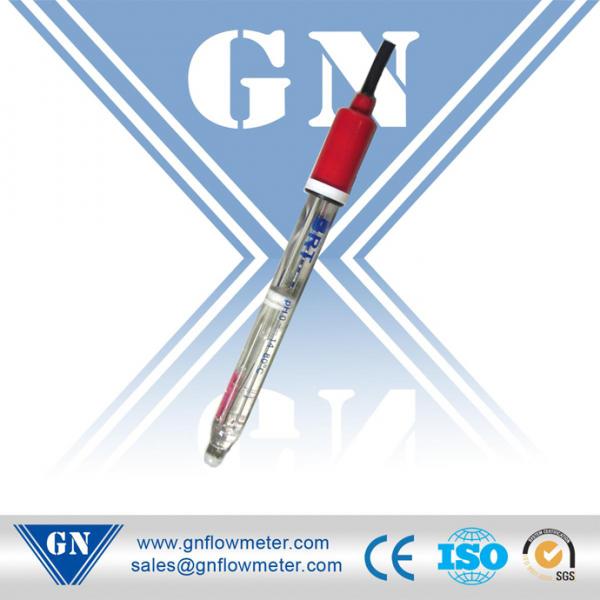

CXGP211 Plastic shell pH electrode
Character ：
★ using the most advanced solid electrolyte and large area of PTFE liquid junction,
not easy to block. Semi-circular bulb to reduce the risk of foreign matter impact crusher.
★ long-distance spread , greatly extending the electrodes service life in harsh environments
★ wide temperature range, can be used for hazardous areas.
★ new design of the glass bulb, increasing the bulb area ,to prevent dry
Interference generated bubbles to make the measurement more reliable.
★using the PPS case up and down 3/4NPT pipe thread, easy to install, no need of jacket,
Saving installation costs.
★ electrode using the high-quality low noise cable, allows the output signal is greater than 20 meters length
No interference.
Applied range:
Chemical Online: pharmaceutical, pigment dyes, pulp and paper, intermediates, fertilizers, starch, titanium dioxide, pesticides, metallurgy, glue, detergent and other industries
Water: air scrubber, boiler water, cooling water, heat and power plant water
Wastewater: electroplating wastewater, industrial wastewater, heavy metals precipitation
Character ：
| Measuring range ：0-14pH | Temperature range ：0-60℃ |
| Pressure ：0.6MP | Installation way： up and down 3/4NPT pipe thread |
| Material ：PPS | connection way ： Leads directly to low-noise cable |
★ using the most advanced solid electrolyte and large area of PTFE liquid junction,
not easy to block. Semi-circular bulb to reduce the risk of foreign matter impact crusher.
★ long-distance spread , greatly extending the electrodes service life in harsh environments
★ wide temperature range, can be used for hazardous areas.
★ new design of the glass bulb, increasing the bulb area ,to prevent dry
Interference generated bubbles to make the measurement more reliable.
★using the PPS case up and down 3/4NPT pipe thread, easy to install, no need of jacket,
Saving installation costs.
★ electrode using the high-quality low noise cable, allows the output signal is greater than 20 meters length
No interference.
Applied range:
Chemical Online: pharmaceutical, pigment dyes, pulp and paper, intermediates, fertilizers, starch, titanium dioxide, pesticides, metallurgy, glue, detergent and other industries
Water: air scrubber, boiler water, cooling water, heat and power plant water
Wastewater: electroplating wastewater, industrial wastewater, heavy metals precipitation
