Type：thermal resistance with threaded connector
Illustrate：1) Type 220,221 for anti-spray type, protection class IP65; Type 230,231 for water-proof type, protection class IP55;
Thermal Resistance with Threaded Connector
| Type | Graduation |
Measuring range ℃ |
Thermal Response Time |
Specification | |
| d | L | ||||
|
WZP-220 WZP2-220 |
Pt100 | -200~500 | <90S | Φ16 |
300*50 350*00 400*50 450*00 500*50 550*00 650*00 900*50 1150*000 1650*500 2150*000 |
|
WZP-220G WZP2-220G |
<24S | ||||
|
WZP-221 WZP2-221 |
<45S | Φ12 | |||
|
WZP-221G WZP2-221G |
<24S | ||||
|
WZP-230 WZP2-230 |
<90S | Φ16 | |||
|
WZP-230G WZP2-230G |
<24S | ||||
|
WZP-231 WZP2-231 |
<45S | Φ12 | |||
|
WZP-231G WZP2-231G |
<24S | ||||
| WZC-220G |
Cu50 Cu100 |
-40~100 | <120S | Φ16 | |
| WZC-220 | <40S | ||||
| WZC-230 | <120S | ||||
| WZC-230G | <40S | ||||
| WZC-221 | <120S | Φ12 | |||
| WZC-221G | <40S | ||||
| WZC-231 | <120S | ||||
| WZC-231G | <40S | ||||
1) Type 220,221 for anti-spray type, protection class IP65;
Type 230,231 for water-proof type, protection class IP55;
- Protection tube material is 1Cr18Ni9Ti, and we also produce the resistance with protection tube of other material.
- Normal pressure < 10Mpa

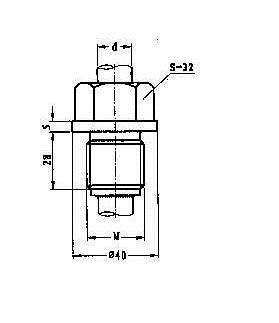

| Model type | thread specification | d | |
| code | M | ||
| WZP-230 | M27*2 | Φ16 | |
| WZP-230A | A | G3/4 | |
| WZP-230C | C | NPT3/4 | |
| WZP-231G | M27*2 | Φ20 | |
| WZP-231GA | A | G3/4 | |
| WZP-231GC | C | NPT3/4 | |
