Type：thermal resistance with fixed flange
Illustrate：1) Type 420,421 for anti-spray type, protection class IP65; Type 430,431 for water-proof type, protection class IP55; Protection tube material is 1Cr18Ni9Ti, and we also produce the resistance with protection tube of other material. Normal pressure < 2.5Mpa
Thermal Resistance with Fixed Flange
| Type | Graduation | Measuring range ℃ |
Thermal Response Time |
Specification | |
| d | L | ||||
|
WZP-420 WZP2-420 |
Pt100 | -200~500 | <90S | Φ16 |
300*50 350*00 400*50 450*00 500*50 550*00 650*00 900*50 1150*000 1650*500 2150*000 |
|
WZP-420G WZP2-420G |
<24S | ||||
|
WZP-421 WZP2-421 |
<45S | Φ12 | |||
|
WZP-421G WZP2-421G |
<24S | ||||
|
WZP-430 WZP2-401 |
<90S | Φ16 | |||
|
WZP-430G WZP2-430G |
<24S | ||||
|
WZP-431 WZP2-431 |
<45S | Φ12 | |||
|
WZP-431G WZP2-431G |
<24S | ||||
| WZC-420G |
Cu50 Cu100 |
-40~100 | <120S | Φ16 | |
| WZC-420 | <40S | ||||
| WZC-430 | <120S | ||||
| WZC-430G | <40S | ||||
| WZC-421 | <120S | Φ12 | |||
| WZC-421G | <40S | ||||
| WZC-431 | <120S | ||||
| WZC-431G | <40S | ||||
1) Type 420,421 for anti-spray type, protection class IP65;
Type 430,431 for water-proof type, protection class IP55;
- Protection tube material is 1Cr18Ni9Ti, and we also produce the resistance with protection tube of other material.
- Normal pressure < 2.5Mpa

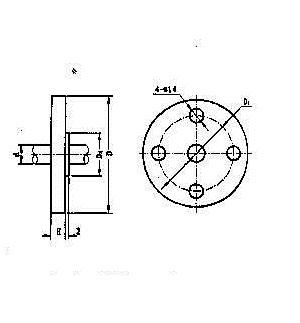

| Model type | flange specification | ||||
| D | D1 | D2 | H | D | |
| WZP-420 | Φ105 | Φ75 | Φ55 | 16 | Φ16 |
| WZP-420G | Φ105 | Φ75 | Φ55 | ||
| WZP-421 | Φ105 | Φ75 | Φ55 | 16 | Φ12 |
| WZP-421G | Φ105 | Φ75 | Φ55 | ||
