Steam flow meter selection
Today a customer wants to buy a steam flow meter. He provided his reference flow meter model and needed us to
recommend a suitable gas flow meter for him to replace
recommend a suitable gas flow meter for him to replace
1. Application: Steam flow measurement
Model: Optiswirl4200 (remote installation version)
Working pressure: 8~9bar
Maximum flow: 5000kg/h
Pipe diameter specification: 80NB (3 inches)
Measuring range: 200~5000kg/h (under 8bar conditions)
2. Application: Steam flow measurement
Model: Optiswirl4200 (remote installation version)
Working pressure: 8~9bar
Maximum flow: 2000kg/h
Pipe diameter specification: 50NB (2 inches)
Measuring range: 101~2000kg/h (under 8bar conditions)
After receiving the consultation, our technicians recommended the following two vortex flow meters

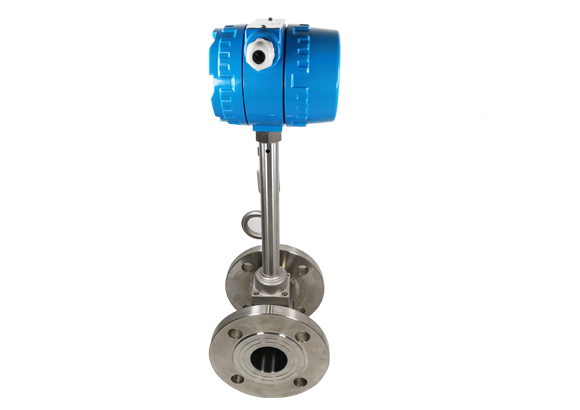

Vortex flow meter
Model CX-VFM-GB-80-S-4-D-D-W-PT-I
Diameter: DN80
Medium: Steam
Flow rate: 200～5000kg/h (under 8bar conditions)
Power supply: DC24V
Output: 4-20MA two-wire
Accuracy: 1.5%
Display: LCD
Temperature: 50 to 250C
Pressure: 0.8Mpa
Material: Stainless steel
Connection: Two-piece clamped carbon steel flange
With temperature and pressure compensation
Clamped type with carbon steel flange, isolated and replaceable type, temperature and pressure integrated
Vortex flowmeter
Model CX-VFM-GB-50-S-4-D-D-W-PT-I
Diameter: DN50
Medium: Steam
Flow range: 101～2000kg/h (under 8bar conditions)
Power supply: DC24V
Output: 4-20MA Two lines
Accuracy: 1.5%
Display: LCD
Temperature: 50 to 250C
Pressure: 0.8Mpa
If you also encounter problems such as steam flow meter and gas flow meter selection and quotation, please consult CIXIFM winny:
