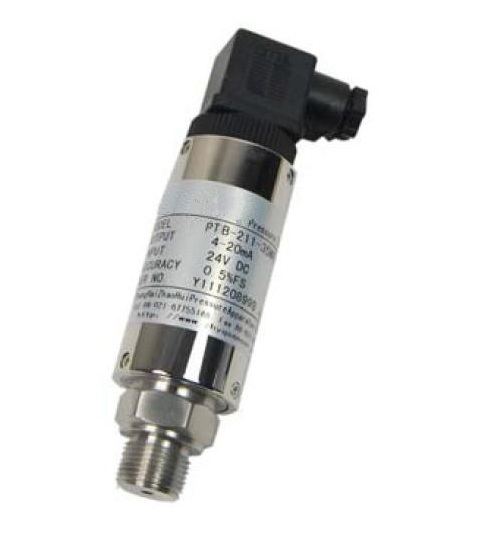

Description
With stainless steel welding encapsulated component and lightning proof isolation device, CXPTB-215 (Explosion  Proof :EXiallCT4-6)  has  the  character  of  corrosion  proof,  wide  range  temperature compensation, excellent linearity and diversifying output signal .This series can be suitable for liquid pressure measuring for explosion proof in automatization fields.

Application                                                                         Dimension

Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applicastions
Feature
PressureRange:0…0.2bar to 0….600bar available
Various standard Industrial signal output
All stainless steel and anticorrosive
Stronger anti-jamming ability
High stability & high sensitivity
Intrinsically safe & explosion proof construction


Specification
Range    0….1to 0….600bar
Accuracy       0.25%FS；0.5%FS
Nonlinearity   0.2%FS
Reliability      0.05%FS
Output   4-20mA（2 Wire）, 0-5V; 0.5-4.5V
Input voltage24(12~36)VDC (Amplify signal)
WorkTemperature Range-0~80℃
Compensated temp range  0~70℃
Overload pressure      150%FS
Medium material   stainless steel
Electric connection     Hirschman（DIN, M12 & 4 PIN, Bendix connector, cable customer design）
Pressure connection   G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5,etc（Customer design）


Electric Connection


Electric connector	2wire(4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman 3   GSP	Pin	Function		Color	Pin	Function		Color
	1	E+/S+		Red	1	E+		Red
	2	E-/S-		Black	2	S+		Blue
	3	---		---	3	E-/S-		Black
M12,4Pin     1 2       4 3	Pin	Function		Color	Pin	Function		Color
	1	E+		Brown	1	E+		Brown
	2	---		---	2	---		---
	3	E+		Blue	3	S+		Blue
	4	---		---	4	E-/S-		White
Cable	Function		Color		Function		Color
	E+		Red		E+		Red
	S+		Black		S+		Blue
	---		---		E-/S-		White



Ordering Guide


Model	Range(bar)	Output	Screw Thread	Electric connection	Other requirement
CXPTB-215	---	---	---	---	---
Example: CXPTB-215-50Bar-4/20mA-G1/2- M12




Remarks：
Pleaseconnectthepressuretransmitterwiththeoppositeconnectionfordifferenceelectricconnector.Ifthepressure transmitterswith cable, pleaseconsult the right color.
