Description

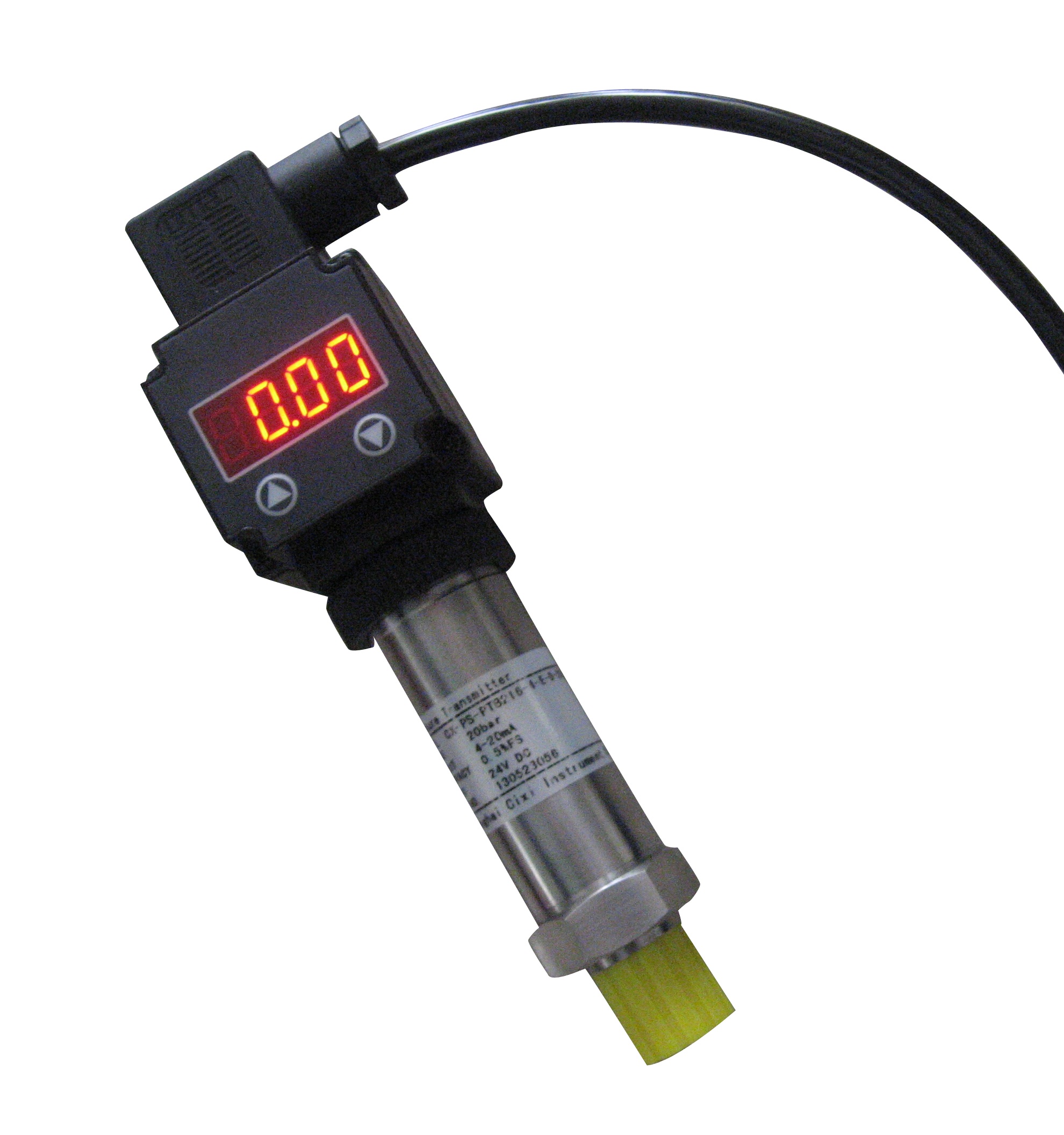

Adopting global advanced electron ceramic technology,CXPTB-216 (LED display) with low range has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion proof, etc. This series can be applied in Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.
Application
Defense industry, Scientific research, Space industry
Petroleum, Chemical industry
Electric power ,Ocean and other fields
Feature
PressureRange:0….10mbar to 0….10bar
Measuring element: no medium liquid
Ceramics technology,
High accuracy, stable capability, little temp-draftoverload resistance ,high impact resistance, excellent linearity
Lasting high stability
Wide temperature range, corrosion proof


Dimension


















Specification
Range:        0….1bar to 0….10bar
Accuracy:         0.5%FS
Nonlinearity:      0.2%FS
Reliability:            0.05%FS
Output:  4-20mA（2 Wire）
Input voltage:       24(12~36)VDC (Amplify signal )
Operat Temperature:  -40~80℃
Compensated temperature:      0~70℃
Overload pressure:     150%FS
Medium material:  stainless steel
Electric connector:      Hirschman（Big DIN）
Process connector:     G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5（Customer design）

Wiring code

Electric connector	2wire(4-20mA)			3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman 3     GSP	Pin	Function	Color	Pin	Function	Color
	1	E+/S+	Red	1	E+	Red
	2	E-/S-	Black	2	S+	Blue
	3	---	---	3	E-/S-	Black


Ordering Guide

Model	Range(bar)	Output	Screw Thread	Electric connection	Other requirement
CXPTB-216	---	---	---	---	---
Example: CXPTB-216-50Bar-4/20mA-G1/2-Hirschmann


Remarks：
Pleaseconnectthepressuretransmitterwiththeoppositeconnectionfordifferenceelectricconnector.Ifthepressure transmitterswith cable, pleaseconsult the right color.
