Description

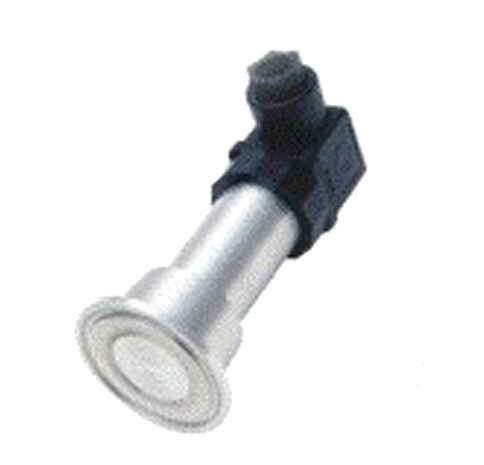

Adopting the special sensor chip with exact accuracy and high stability, CXPTB-217(couplingconnection type) is suitable for pressure measuring and controlling in the clean asepsis conditions and the conditions which are easy to block.

Application
Process engineering
Chemical industry
Foodstuff industry
Paper industry

Feature
PressureRange:-1…0…100bar
Various signal output for industrial standard
Wide pressure range
High accuracy, high stability
compact dimension design with high-standard quality

Dimension










Remarks: Above dimensions only for you reference and we can tailor the appearance follow the
customer’s requirement.


Specification

Range:	1…0…100bar
Accuracy:	0.5%FS
Nonlinearity:	0.2%FS
Reliability:	0.05%FS
Output:	4-20mA（2 Wire）, 0-5V; 0.5-4.5V
Input voltage:	24(12~36)VDC (Amplify signal)
Operat Temperature:	-40~80℃
Compensated temperature:	0~70℃
Overload pressure:	150%FS
Medium material:	stainless steel or Hardening Aluminum
Electric connector:	Hirschman（DIN）, M12,4pin, Bendix connector, cable, etc（Customer design）
Process connector:	0.5″, 1″, 1.5″


Electric Connection Code


Electric connector	2 Wire (4-20mA)				3 Wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman                      3       GSP	Pin	Function		Color	Pin	Function		Color
	1	E+/S+		Red	1	E+		Red
	2	E-/S-		Black	2	S+		Blue
	3	---		---	3	E-/S-		Black
M12,4 Pinconnector     1 2       4 3	Pin	Function		Color	Pin	Function		Color
	1	E+		Brown	1	E+		Brown
	2	---		---	2	---		---
	3	S+		Blue	3	S+		Blue
	4	---		---	4	E-/S-		White
Cable	Function		Color		Function		Color
	E+		Red		E+		Red
	S+		Black		S+		Blue
	---		---		E-/S-		White

OrderingGuide
Ordeing Guide


Model	Range(bar)	Output	Screw Thread	Electric connection	Other requirement
CXPTB-217	---	---	---	---	---
Example：CXPTB-217-50Bar-4/20mA-1.5″-Hirschman



Remarks：
Pleaseconnectthepressuretransmitterwiththeoppositeconnectionfordifferenceelectricconnector.Ifthepressure transmitterswith cable, pleaseconsult the right color.
