Description

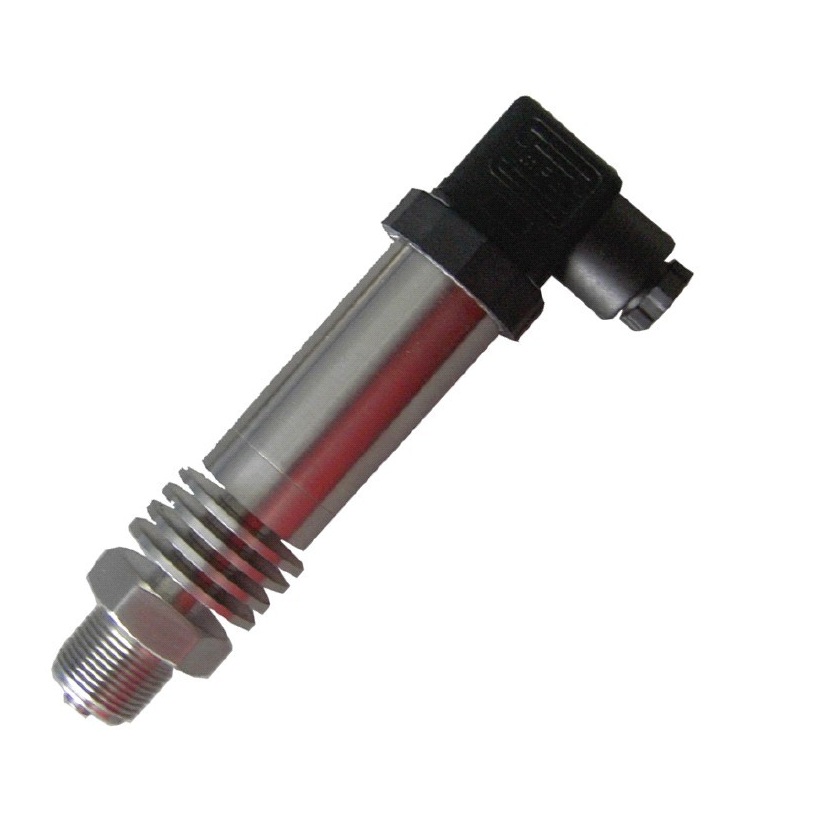

CXPTB-218 series of pressure transmitters with has been carefully designed to cover the majority of industrial applications  with  instruments  readily  available  from  stock.  For  application  with  higher  temperature
requirements an integrated cooling element enables medium temperature up to 150℃. Compact design and
robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.
Application
Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applicastions
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Dimension

Remarks: Above dimensions only for you reference and we can tailor the appearance follow the customer’s requirement.

Specification
Range:                                0….1bar to 0….1000bar
Accuracy:                           0.5%FS
Nonlinearity:                      0.2%FS
Reliability:                          0.05%FS
Output:                                4-20mA（2 Wire）, 0-5V; 0.5-4.5V (3 wire)
Input voltage:                       24(12~36)VDC (Amplify signal) Operating temperature:       -20~125℃
Compensated temperature:    0~70℃
Overload pressure:                150%FS
Medium material:                stainless steel or Hardening Aluminum
Electric connector:               Hirschman（DIN）,M12,4pin, Bendix connector, cable,（Customer design）
Process connector:               G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5（Customer design）

Electric Connection      Mode


Electric connector	2wire (4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman 3       GSP	Pin	Function		Color	Pin	Function				Color
	1	E+/S+		Red	1	E+				Red
	2	E-/S-		Black	2	S+				Blue
	3	---		---	3		E-/S-			Black
M12 ,4 PINConnection     1 2       4 3	Pin	Function		Color	Pin	Function				Color
	1	E+		Brown	1	E+				Brown
	2	---		---	2	---				---
	3	S+		Blue	3	S+				Blue
	4	---		---	4	E-/S-				White
Cable	Function		Color		Function			Color
	E+		Red		E+			Red
	S+		Black		S+			Blue
	---		---		E-/S-			White



Ordering Guide


Model	Range(bar)	Output	Screw Thread	Electric connection	Other Requirement
CXPTB-218	---	---	---	---	---
Example: CXPTB-218-50Bar-4/20mA-G1/2-Hirschmann


Remarks：
Please connect the pressure transmitter with the opposite connection for difference electric connector. If the pressure transmitters with cable, please consult the right color.
