Description

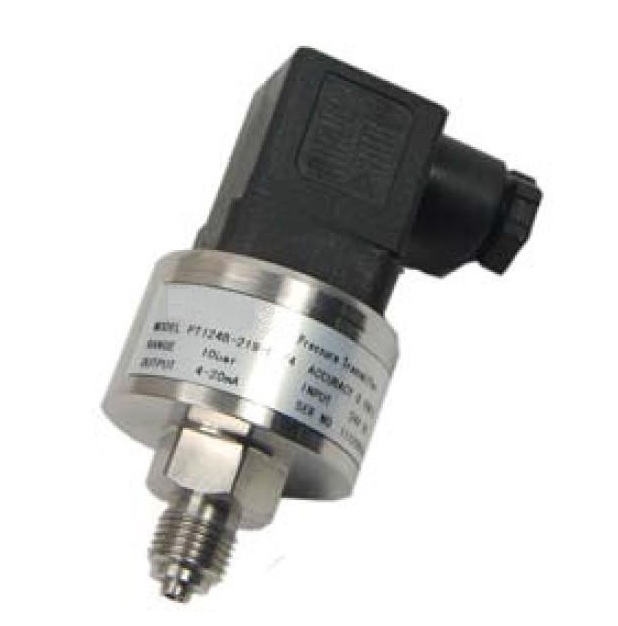

CXPTB-219 has been designed for all fields of industrial pressure measurement. With IP65 protection and 316 L seal construction, strong impact resistance, good linearity, long-term stability and repeatability, wide range temperature compensation, corrosion resistance, etc. Typical applications are in the fields of shipping industry, Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.
Application
Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applicastions
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Dimension

Above dimensions only for you reference and we can tailor the appearance follow the customer’s requirement.


Specification
Range:1bar,  1.6bar,  2.5bar,  4bar,  6bar,  10bar,  16bar,  25bar,  40bar, 60bar, 100bar, 160bar, 250bar, 400bar, 600bar, 1000bar
Accuracy:       0.5%FS
Nonlinearity:   0.2%FS
Reliability:       0.05%FS
Output:   4-20mA（2 Wire）, 0-5V；0.5-4.5V (3 wire)
Input voltage:24(12~36)VDC (Amplify signal )
Operating temperature:  -20~125℃
Compensated temperature: 0~70℃ O
verload pressure: 150%FS
Medium material: stainless steel
Electric connector: Hirschman（DIN）, M12(circular connector), Bendix connector, direct cable grand
Process connector: G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5（Customer design）

Electric Connection diagram


Electric connector	2wire (4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschma 3       GSP	Pin	Function		Color	Pin	Function		Color
	1	E+/S+		Red	1	E+		Red
	2	E-/S-		Black	2	S+		Blue
	3	---		---	3	E-/S-		Black
M12 ,4 PINConnection     1 2       4 3	Pin	Function		Color	Pin	Function		Color
	1	E+		Brown	1	E+		Brown
	2	---		---	2	---		---
	3	S+		Blue	3	S+		Blue
	4	---		---	4	E-/S-		White
Cable	Function		Color		Function		Color
	E+		Red		E+		Red
	S+		Black		S+		Blue
	---		---		E-/S-		White



Ordering Guide


Model	Range(bar)	Output	Screw Thread	Electric connection	Other requirement
CXPTB-219	---	---	---	---	---
Example: CXPTB-219-50Bar-4/20mA-G1/2-Hirschman

Remarks：
Please connect the pressure transmitter with the opposite connection for difference electric connector. If the pressure transmitters with cable, please consult the right color.
