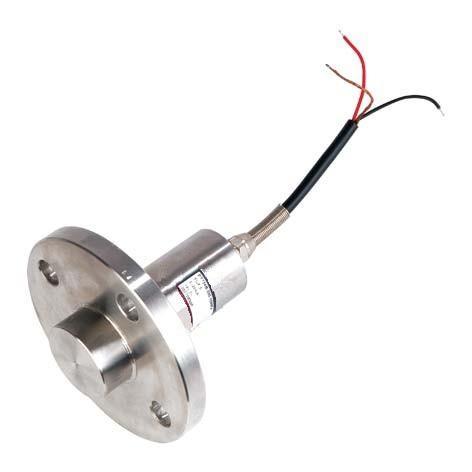

Description
CXPTB-251 adopts the firm diaphragm with special treatment; consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium. This model has the character of compact configuration, corrosion resistance, shock proof, wide
range temperature compensation.
Application
Shield tunnel machinery
Brick-making machinery
Irrigation works, petroleum exploration and etc.

Feature
Wide range temperature compensation
Various standard output
Direct shield cables
Corrosion resistance, shock proof

 Dimension





Specification
Range     0….50mBar to 0….600Bar
Accuracy0.5%FS; 1%FS
Linear                  0.2%
Reliability      0.05%FS
Output    4-20mA; 0-5V; 0.5-4.5V ;1-5V
 Input voltage24(12~36)VDC
Operation Temperature  -40~125℃
Temperature compensation    0~80℃
Over Pressure150%FS
Medium Material    316SS
Electric connectionDirect shield cable
PressurePort  Flange

Electric Connection diagram


Electric connector	2wire (4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschma 3       GSP	Pin	Function		Color	Pin	Function		Color
	1	E+/S+		Red	1	E+		Red
	2	E-/S-		Black	2	S+		Blue
	3	---		---	3	E-/S-		Black
M12 ,4 PINConnection     1 2       4 3	Pin	Function		Color	Pin	Function		Color
	1	E+		Brown	1	E+		Brown
	2	---		---	2	---		---
	3	S+		Blue	3	S+		Blue
	4	---		---	4	E-/S-		White
Cable	Function		Color		Function		Color
	E+		Red		E+		Red
	S+		Black		S+		Blue
	---		---		E-/S-		White



Ordering Guide


Model	Range(bar)	Output	Screw Thread	Electric connection	Other requirement
CXPTB-252	---	---	---	---	---
Example：CXPTB-251-600Bar-4/20mA-Flange-Direct shieldcable

Remarks：
Please connect the pressure transmitter with the opposite connection for difference electric connector. If the pressure transmitters with cable, please consult the right color.
