Description

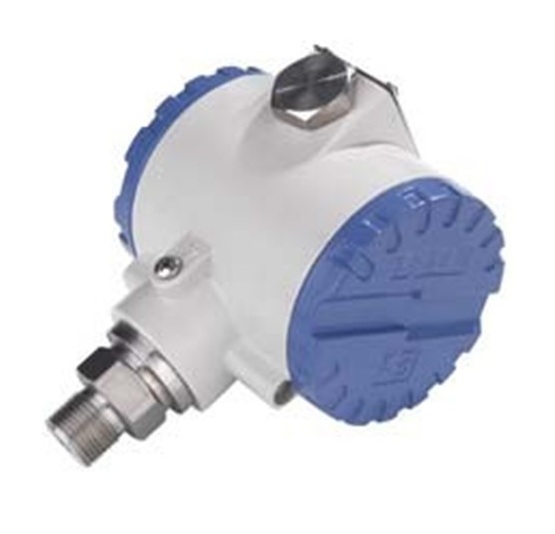

CX PTB-280 standard explosion proof pressure transmitter adopted exact compensation technology, high accuracy high stability, explosion proof shell with LCD display. This production adopted many new technology and new design, it also insure the quality and capability, suitable for all kinds of industrial process liquid measuring and controlling.
Application
Hydraulic controlling
Building automation
Ship
Petroleum and chemical

Feature
High accuracy
High stability
Explosion proof shell with LCD display

Dimension

Remarks: Above dimension only for reference, we can tailor the product as you required.
Specification

Range	0….1bar to 0….2000bar
Accuracy	0.5%FS
Linear	0.02%FS
Over pressure	150%FS
Output	4-20mA
Input voltage	24(12-36V)DC
Operating temperature	-40℃~125℃
Temperaturecompensation	-10℃~70℃
Explosion class	ExiaII CT4
Electric connector	Terminal Block
Processconnector	G1/2, M12,M20x1.5 (optional)

Wiring Code
Inside Terminal of Pressure Transmitter：













Wiring connector:
Power supply   Red
Signal output   Black



Instruction ofwiring：
1,Terminal “CK+”：Input voltage +
2,Terminal “+ ”：Signal output +
3,Terminal “－”and terminal “CK-” In house short circuit, connectionless


Ordering Guide

Model	Range(bar)	Output	Process connection	Electric connection	Other requirement
CXPTB-280	---	---	---	---	---
Example:CXPTB-280-100bar-4/20Ma-G1/2-Direct shield cable
