Type：CX-IUPW-1708 、CX-IUPW-1709
Illustrate： CX-IUPW-1708、CX-IUPW-1709 IndustrialUltra-pureWaterPHElectrode ModelNo.:CX-IUPW-1708 Technicalparameters: Measuringrange:0-14pH Temperaturerange:0-85℃ Compressivestrength:0.6MP Socket:S7andPGl3.5thread Dimensions:Diameter12x..
CX-IUPW-1708 、CX-IUPW-1709

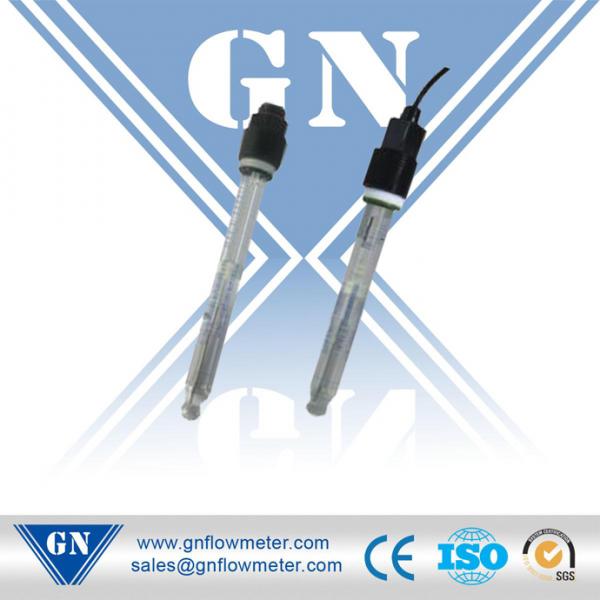

Industrial Ultra-pure Water PH Electrode
Model No.: CX-IUPW-1708
Technical parameters:
Industrial Ultra-pure Water PH Electrode
Model No.: CX-IUPW-1708
Technical parameters:
| Measuring range: 0-14pH | Temperature range: 0-85℃ |
| Compressive strength: 0.6MP | Socket: S7 and PGl3.5 thread |
| Dimensions: Diameter 12 x 120 | Material: Glass |
|
Features: It adopts gel or solid electrolyte, resisting pressure and helping reduce resistance; low resistance sensitive membrane Waterproof connector can be used for pure water testing. There is no need for additional dielectric and there is a little amount of maintenance. It adopts BNC connector, which can be replaced by any electrode from abroad. It can be used in conjunction with 361 L stainless steel sheath or PPS sheath. Standard configuration: Water treatment, pure water industry, power plants, etc. Model No.: CX-IUPW-1709 |
|
|
Technical parameters: |
|
| Measuring range: 2-12 pH | Temperature range: 0-60℃ |
| Compressive strength: 0.6MP | Dimensions: Diameter 12 x 120 |
| Material: Glass | Connection: BNC and “Y” Insert |
|
Features: It adopts a large area of low resistance sensitive membrane, suitable for the use in pure water. It adopts gel dielectric and solid dielectric salt bridge. Two different kinds of colloidal dielectrics form the pool electrode, and this unique technology ensures a longer life and reliable stability of the electrode. Direct Wiring; with BNC and “Y” insert; it can be added with the temperature Compensation resistance and it also can be replaced by any electrode from abroad. Standard configuration: Water treatment, pure water industry, power plants, etc. |
|
